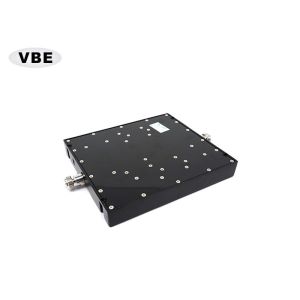

    High Efficiency Mobile Signal Booster 50Ω Impedance 188*108*23mm Dimension

    Indoor Pico OEM GSM980 Black Repeater , Cell Phone Signal Repeater , Mobile Signal Booster


    Model: VBE-GSM980(Black)


    Product Instructions


    Indoor Pico Repeater (Signal Booster) series is an ideal solution for small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to a BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.

    Applications


    • To expand signal coverage or fill signal blind area where signal is weak or unavailable.
    • Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots
    • Application Diagram

    Technical Specifications


    Workig VoltageAC110V-240V DC5V
    Frequency Range(uplink):890-915MHZ
    (downlink):935-960MHZ
    Gain(dB)Uplink≥70 Downlink≥75
    Power≥35dB
    Pass band ripple≤3dB
    Noise figure≤3dB
    VSWR≤1.4(V.S.W.R)
    Transmission Delay≤1μs
    Ambient temperature-10ºC~60ºC
    Impedance50Ω
    Size: (H x W x D)188*108*23mm
    coverage area1000 M²
